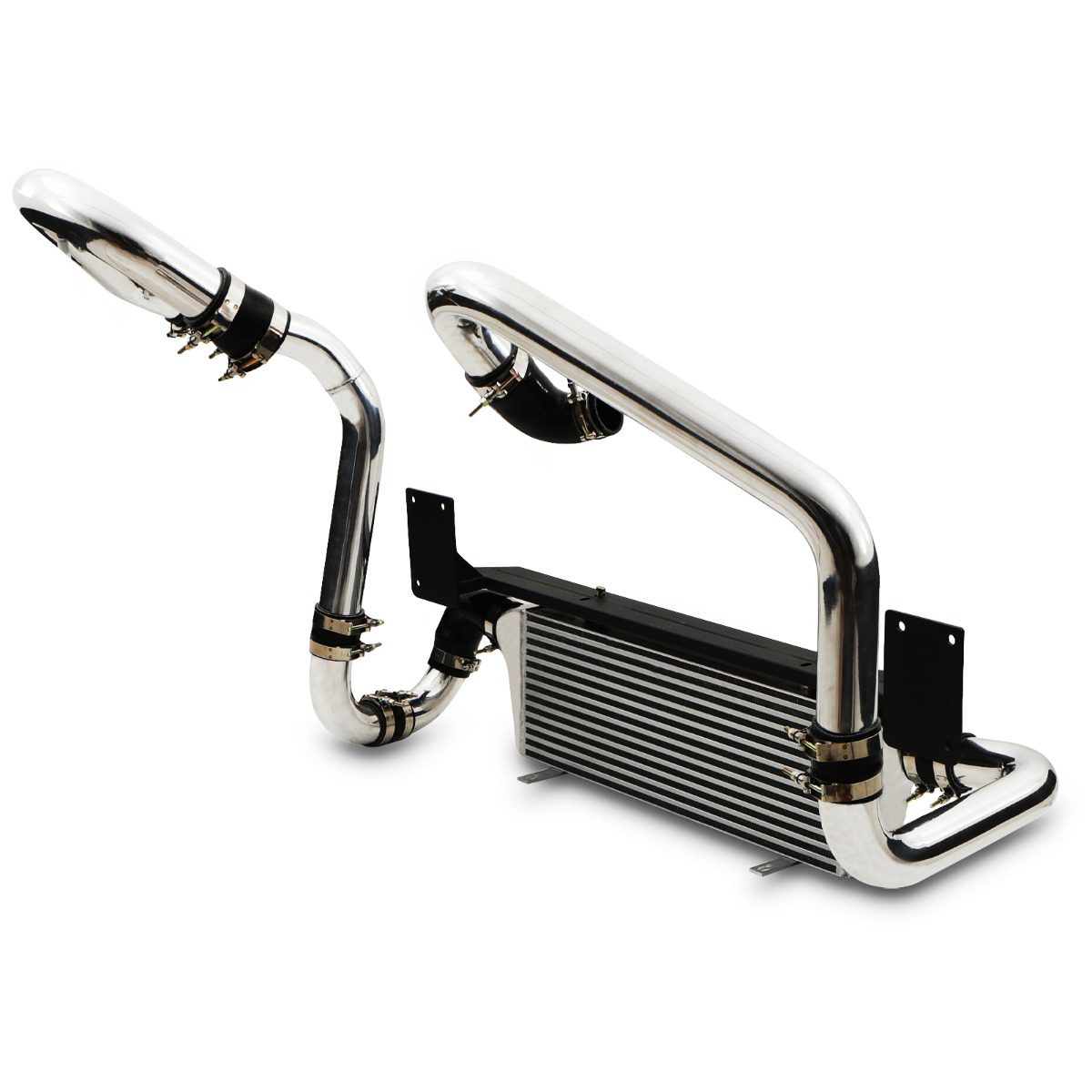

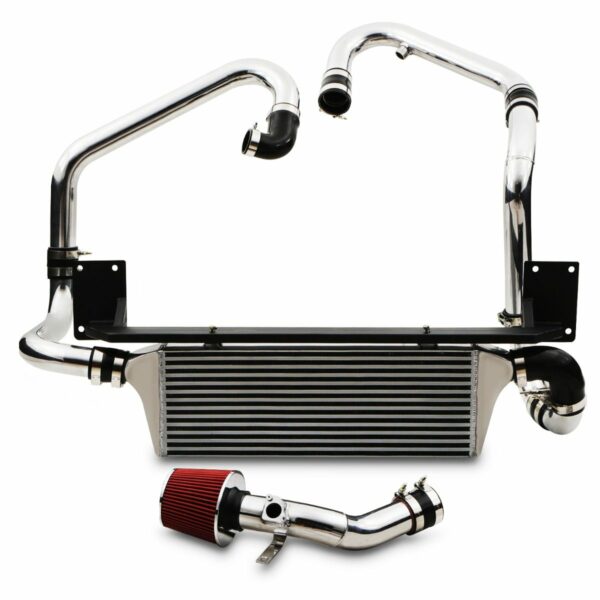

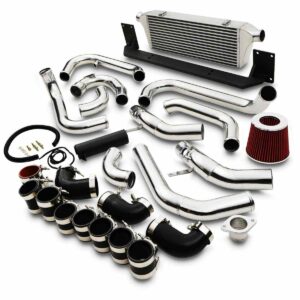

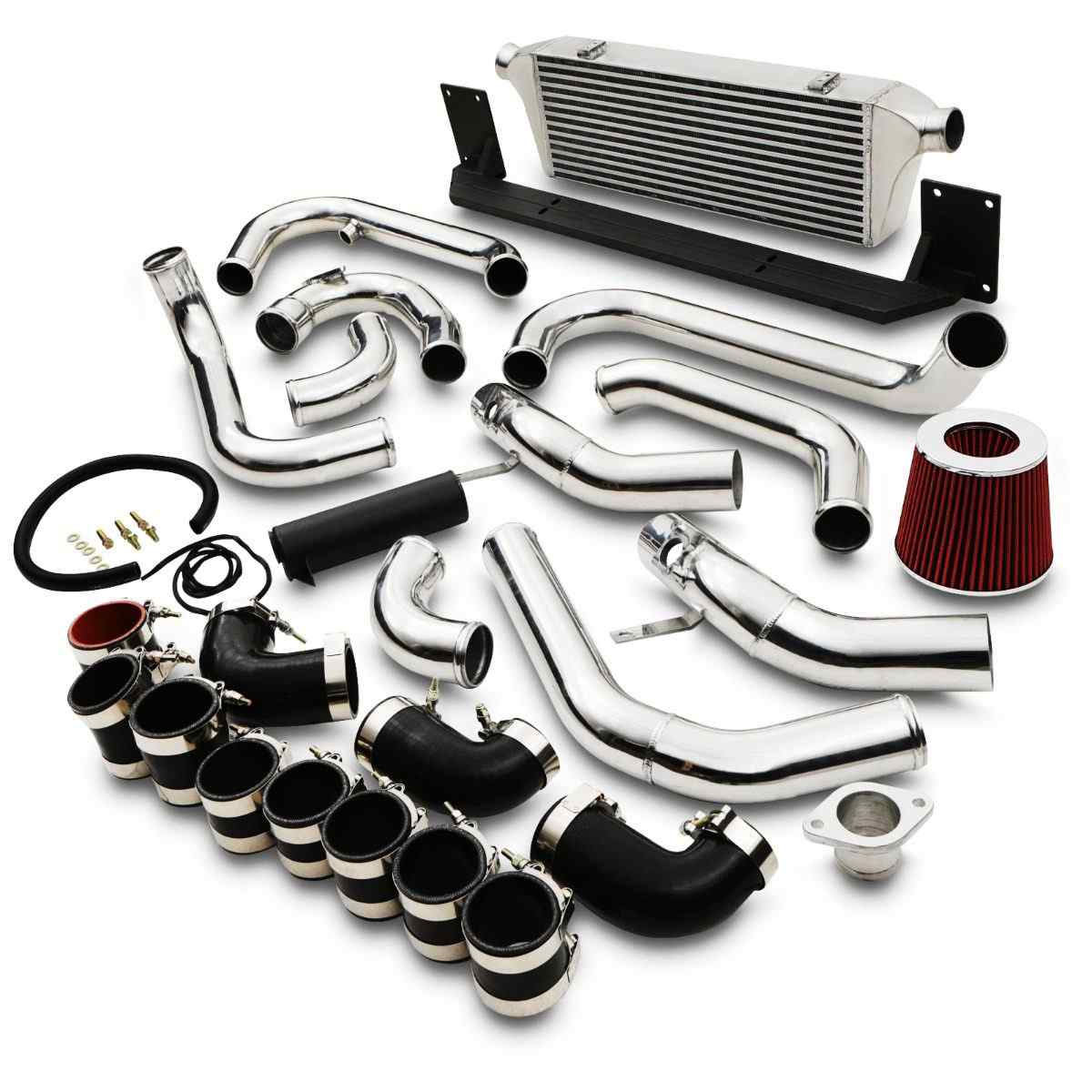

Subaru Impreza WRX & STi 08-11 GRB Front Mount Intercooler & Intake Kit
- QUICK DELIVERY
- WARRANTY INCLUDED
- UK STOCKED PRODUCT
Out of stock
£459.99
Out of stock
Want to be notified when this product is back in stock?
Key Features

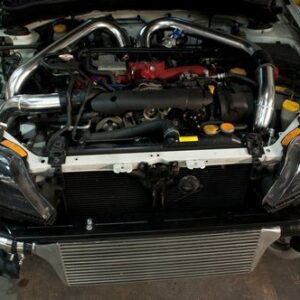

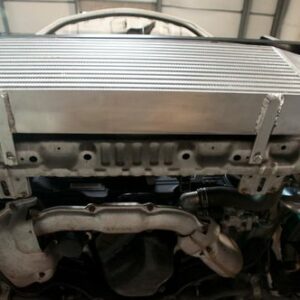

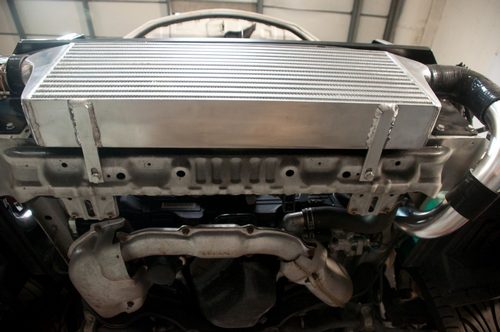

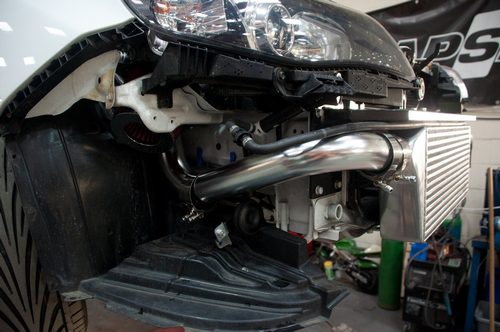

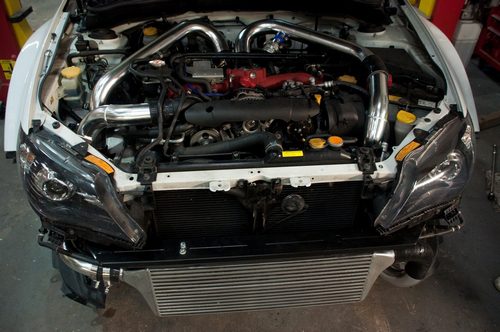

Fitting a front mount intercooler is an excellent way of safely increasing your engine’s power output. This is as a result of reducing the temperature of the air entering the engine, creating a denser charge. The standard Subaru top mount intercooler is a small unit mounted above the engine. Replacing it with a much larger, front mounted item means that much more cooling is on offer for the hot air trying to enter the engine. The cooler the air, the more power you will have on tap.
Features:

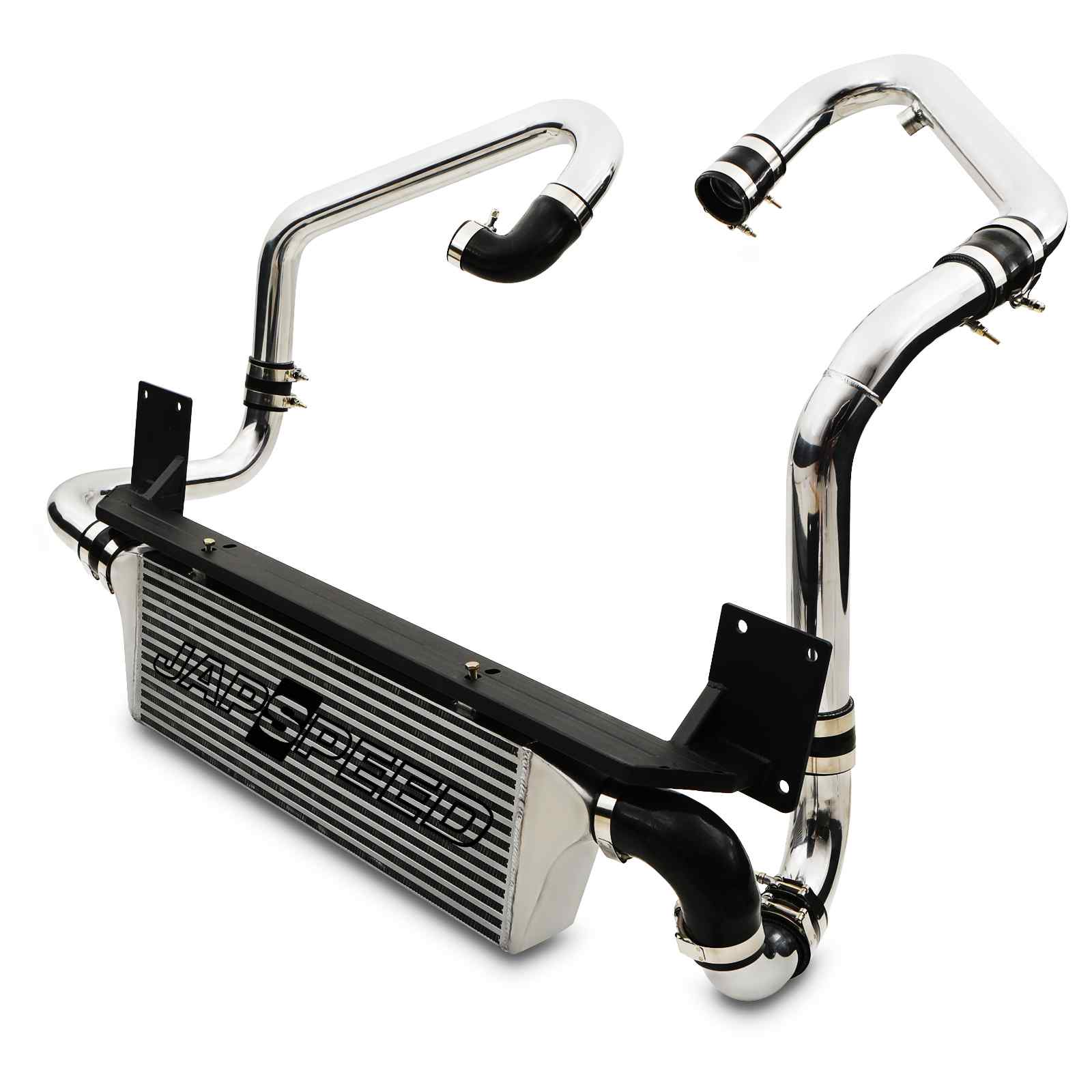

Bar & plate style intercooler (870 x 235 x 90mm)
2.5″ inlet and outlet

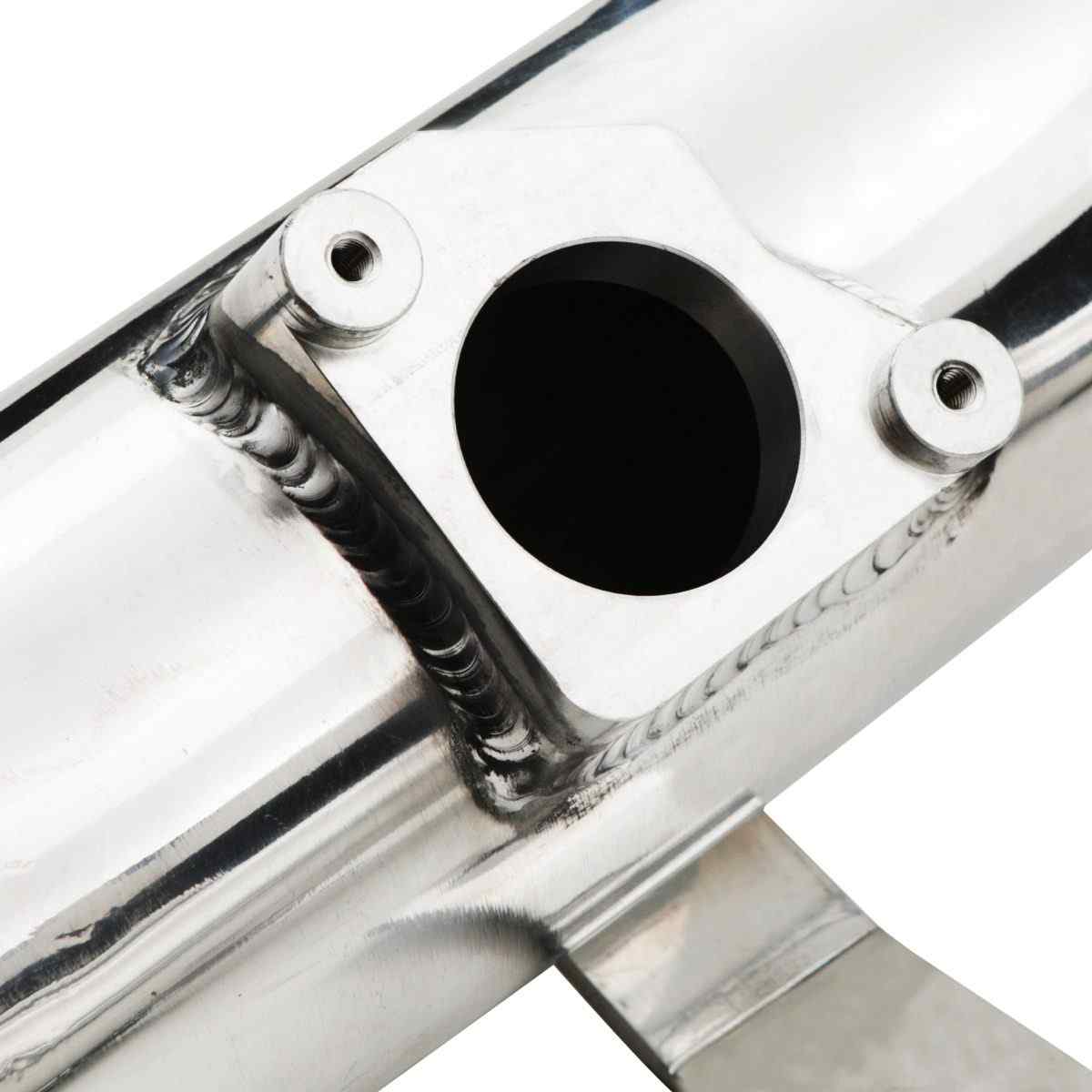

TIG welded

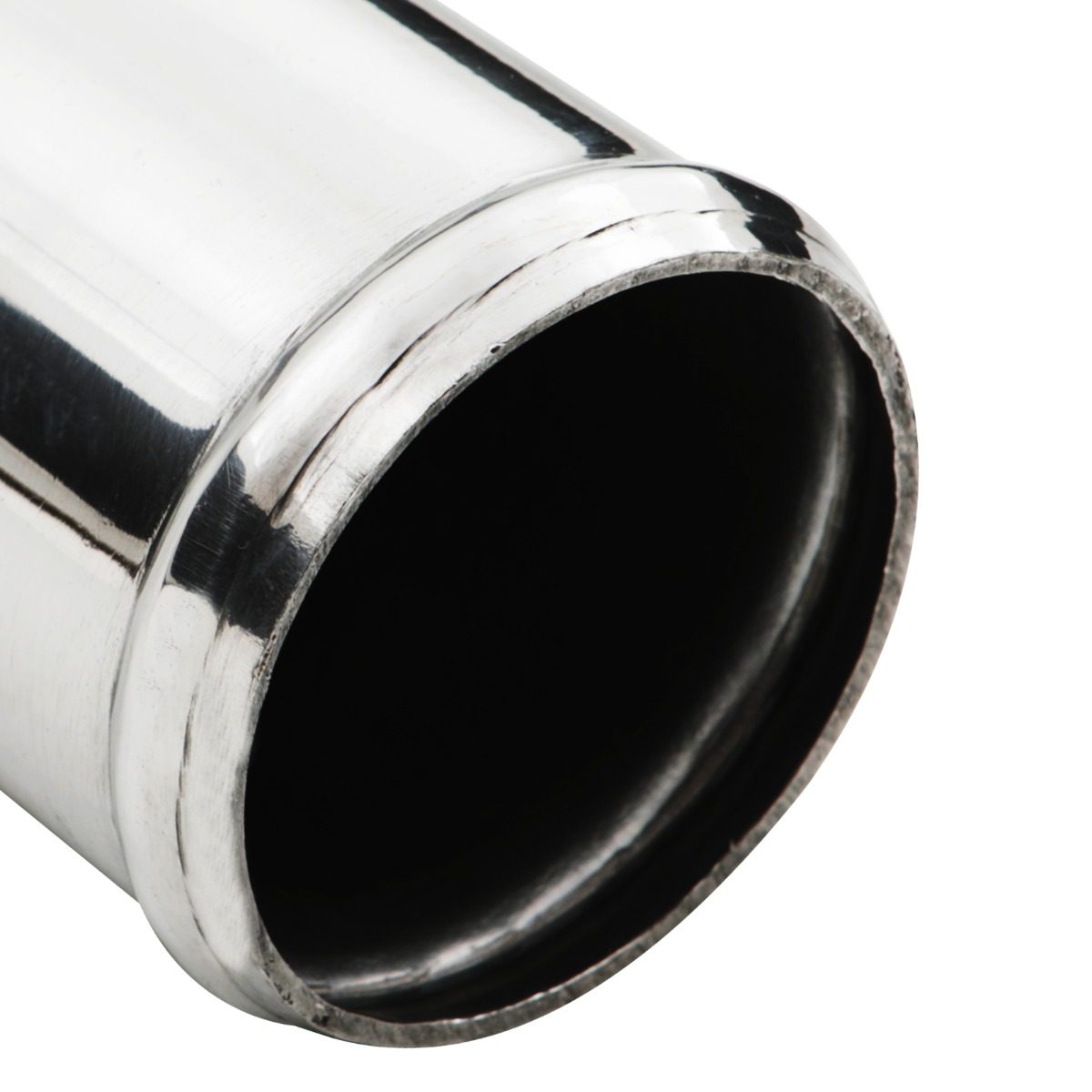

Polished aluminium pipework
All necessary clamps and hoses included
1050cfm @ 0.5psi drop
Compatible With
Subaru Impreza WRX & STi GRB Shark Eye models (2008-2011).
Please note – Includes extra pipework in order to fit Legacy.
Description
Fitting a front mount intercooler is an excellent way of safely increasing your engine’s power output. This is as a result of reducing the temperature of the air entering the engine, creating a denser charge. The standard Subaru top mount intercooler is a small unit mounted above the engine. Replacing it with a much larger, front mounted item means that much more cooling is on offer for the hot air trying to enter the engine. The cooler the air, the more power you will have on tap.
Features:
Bar & plate style intercooler (870 x 235 x 90mm)
2.5″ inlet and outlet
TIG welded
Polished aluminium pipework
All necessary clamps and hoses included
1050cfm @ 0.5psi drop
Compatible With
Subaru Impreza WRX & STi GRB Shark Eye models (2008-2011).
Please note – Includes extra pipework in order to fit Legacy.
Specifications
Additional information
| Weight | 31 kg |
|---|---|
| Core Depth (mm) | 230 |
| Core Length (mm) | 650 |
| Core Width (mm) | 90 |
| Inlet & Outlet Bore (mm) | 63 |
| Overall Depth (mm) | 250 |
| Overall Length (mm) | 880 |
| Overall Width (mm) | 160 |
| Clamps | 17 x 67-75mm / 3 x 73-81mm / 2 x 54-62mm |
| Colour | Silver Pipes, Black Silicone Joiners |
| Pipe Bore 1 (mm) | 70mm + MAF |
| Pipe Bore 2 (mm) | 63mm |
| Pipe Bore 3 (mm) | 63mm + 32mm BOV |
| Pipe Bore 4 (mm) | 63mm |
| Pipe Bore 5 (mm) | 63mm |
| Pipe Bore 6 (mm) | 63mm |
| Pipe Bore 7 (mm) | 63mm |
| Pipe Bore 8 (mm) | 70mm + BOV |
| Pipe Bore 9 (mm) | 64-70mm |
| Pipe Bore 10 (mm) | 64-70mm |
| Pipe Bore 11 (mm) | 63mm |
| Pipe Bore 12 (mm) | 50mm + Bolt on Flange |
| Silicone 1 (mm) | 11mm 67cm long |
| Silicone 2 (mm) | 63mm 90 degree |
| Silicone 3 (mm) | 70mm Straight |
| Silicone 4 (mm) | 63-70mm Reducer |
| Silicone 5 (mm) | 63mm 45degree |
| Silicone 6 (mm) | 63-50mm 90 Degree |
| Silicone 7 (mm) | 63-50mm 90 Degree |
| Silicone 8 (mm) | 63mm Straight |
| Silicone 9 (mm) | 63mm Straight |
